The Finger-Less 46 Corrugation Machine is a heavy-duty, high-speed solution designed for consistent and efficient corrugated sheet production. Equipped with gas heating, dual pre-heaters, imported EN-19 flute and pressure rolls, and a hydraulic self-loading reel stand, it ensures smooth operation, uniform flute formation, and reliable performance at speeds of 30–35 m/min.

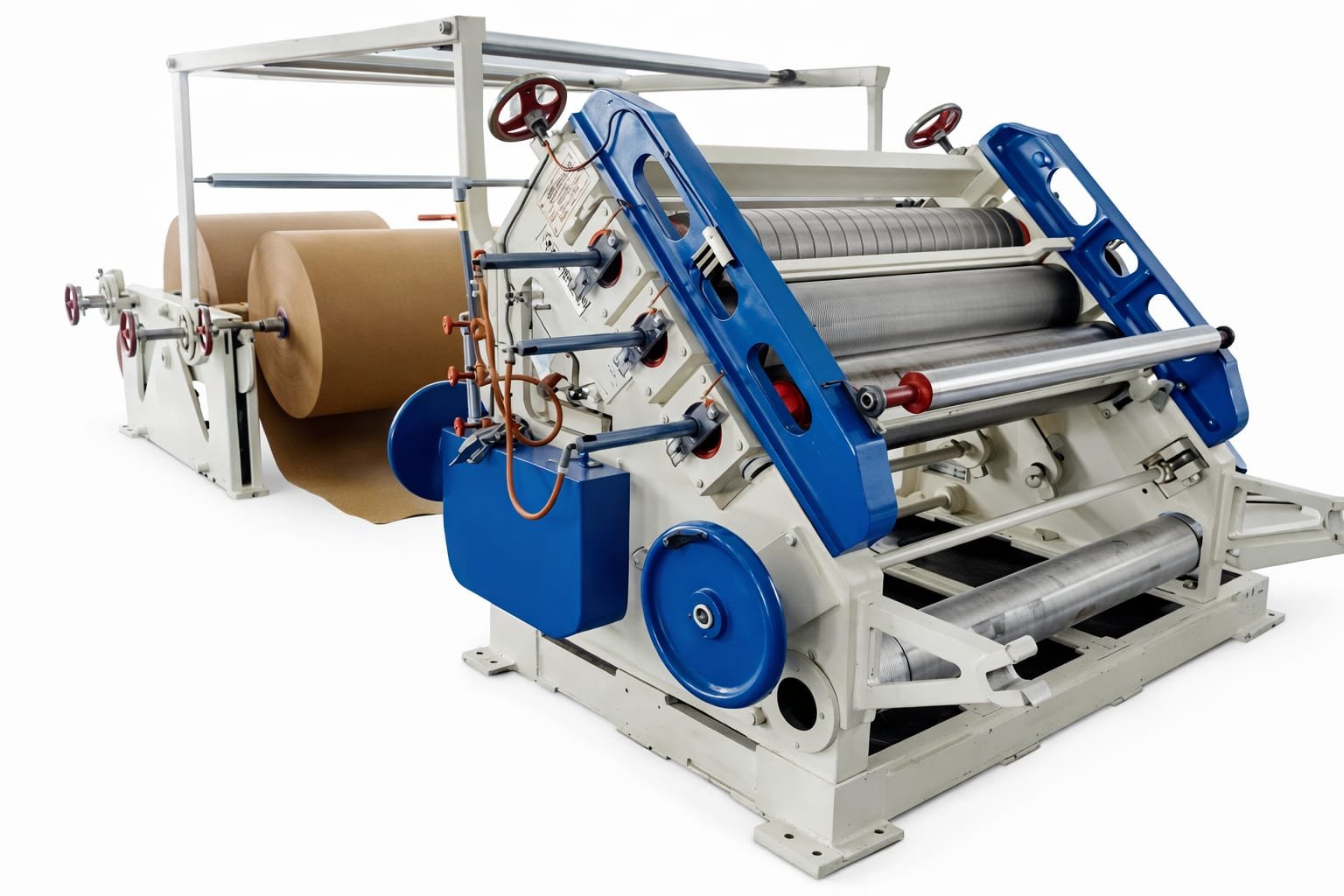

CLASSIC OBLIQUE TYPE FINGER-LESS CORRUGATION MACHINE
Description
HSN/ SAC Code: 84413000
Product Code: FINGER-LESS 46
GAS HEATING & TWO PRE HEATER 8 KW & MAIN MOTOR 7.5 H.P. & BLOWER MOTOR 7.H.P. (Speed 30 to 35mtr/min)
All WITH ONE SET OF NARROW FLUTE ROLLS & ONE PRESSURE ROLL (EN-19 IMPORTED) WITH S.S TUBULAR HEATER, GUM CIRCULATING SYSTEM, HYDRAULIC HEAVY-DUTY SELF LOADING REEL STAND.
1. HEAVY DUTY HIGH-SPEED FLUTE ROLLER, UPPER ROLL DIA-230mm, CENTER ROLL DIA-250mm, PRESSURE ROLL DIA-250mm
2. GAS HEATING SYSTEM.
3. GUM CIRCULATION SYSTEM TO MAINTAIN THE VESCOSITY OF GUM.
4. COMPLETE TOOLSET WITH TOOLBOX FOR THE MACHINE.
5. HYDRAULIC HEAVY DUTY SELF-LOADING REEL STAND.
6. MOTORISED, CENTRALISED LUBRICATING SYSTEM WITH TIMER.
7. S.S. GUM TRAY
8. WITH HIGH-TEMPERATURE GREASE FOR ROLLERS.
9. MOTOR WILL BE OF HAVELLS/ABB/CROMPTON/KISAN MAKE.
10.CANTROL PANEL WITH AC DRIVE.
